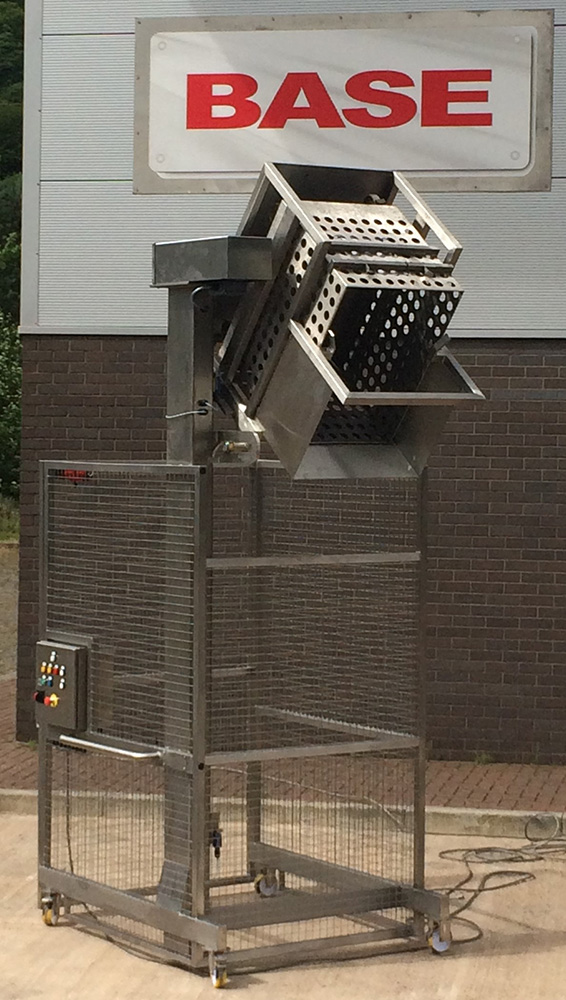

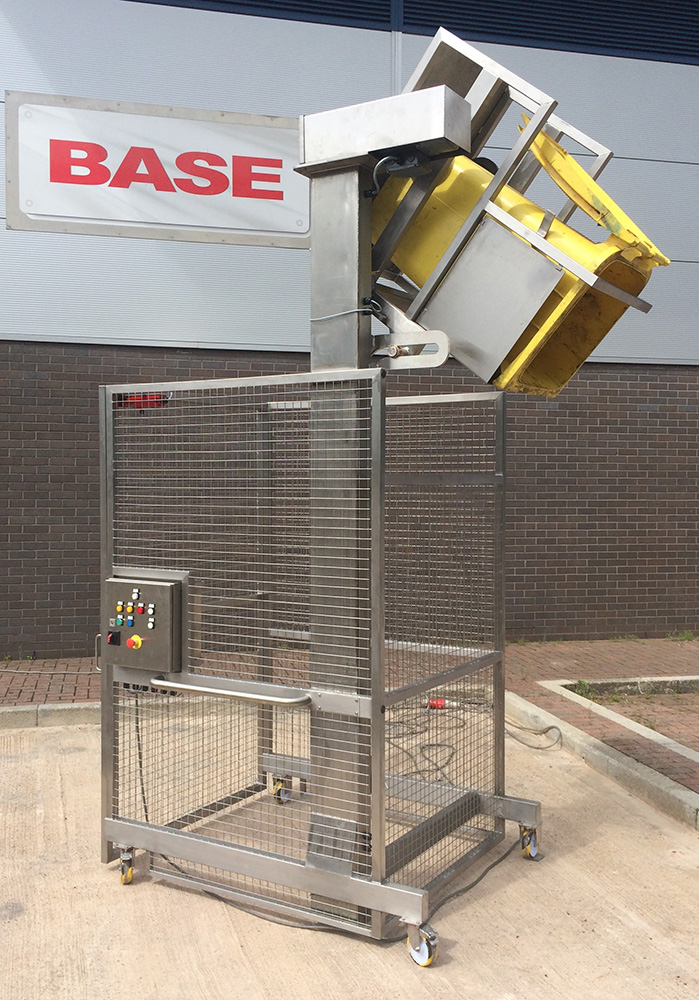

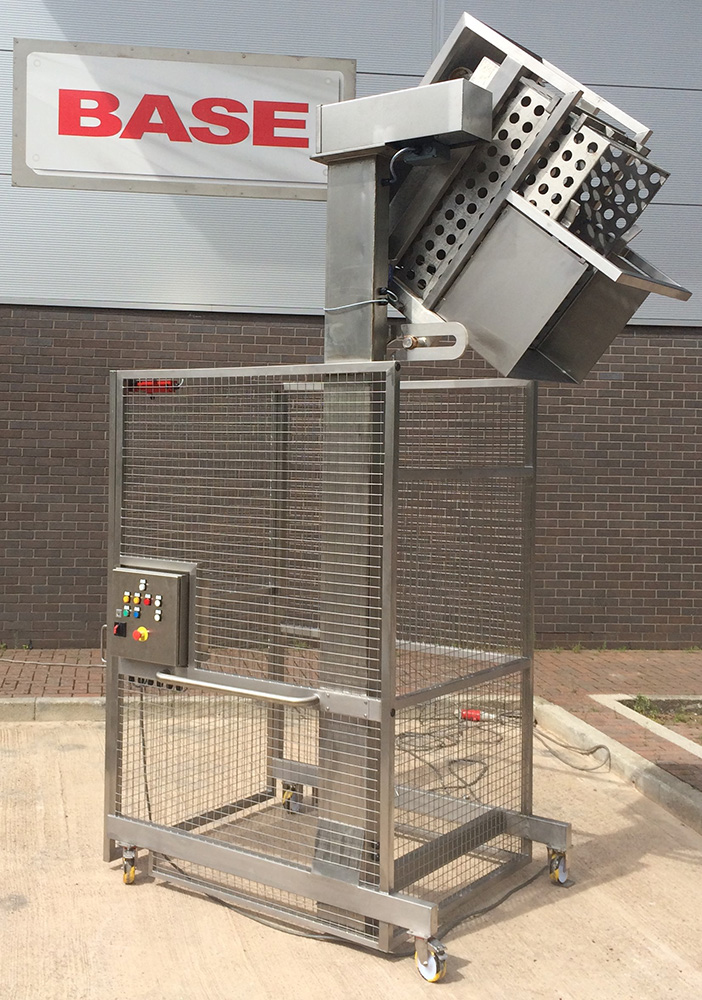

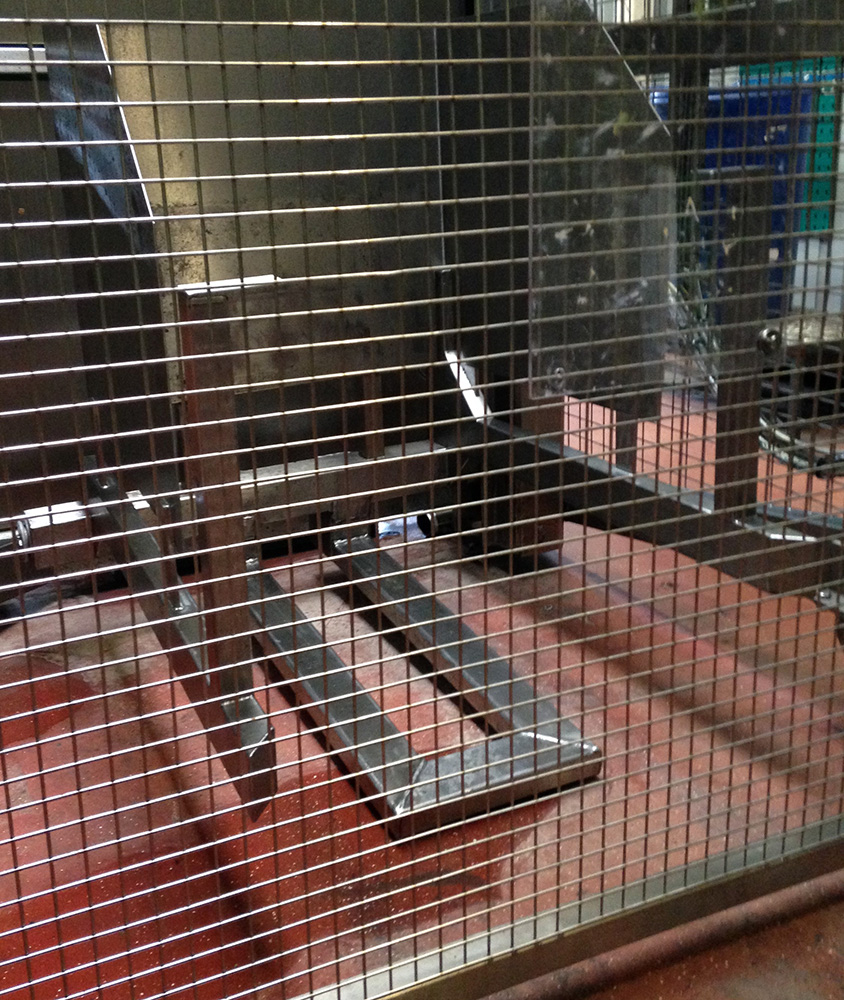

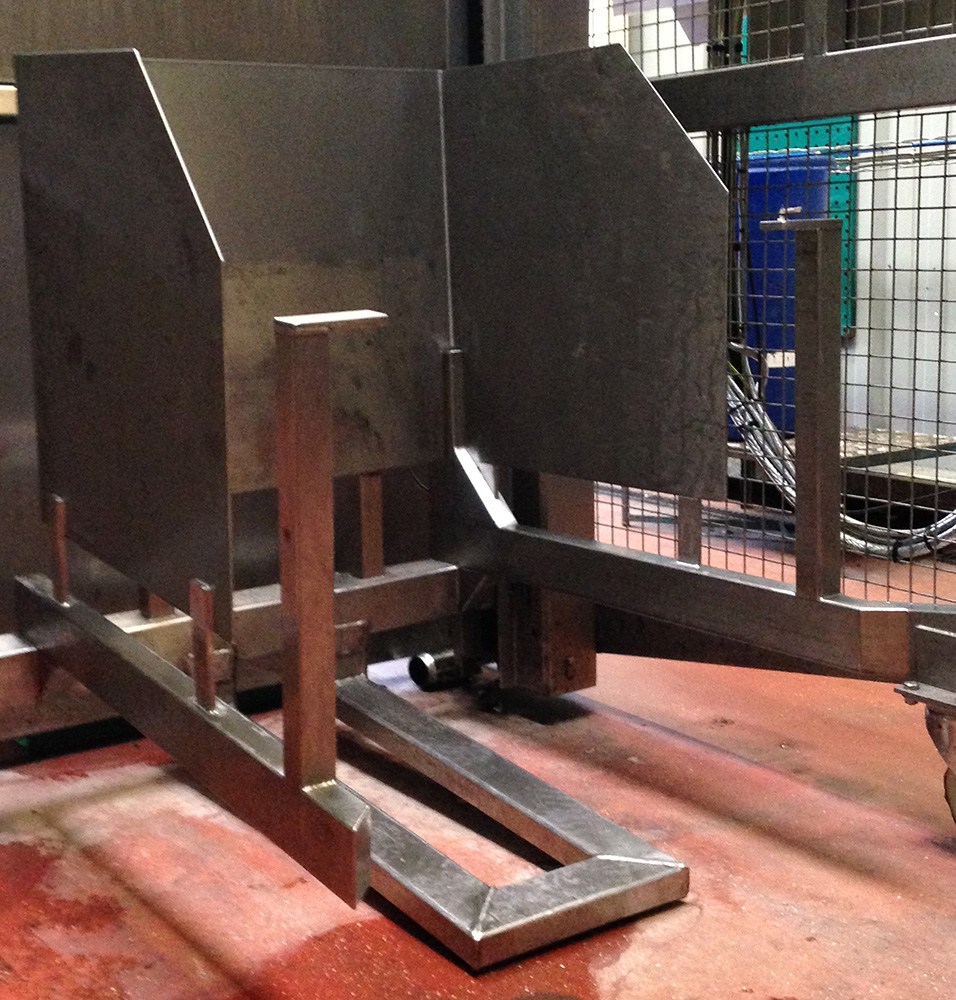

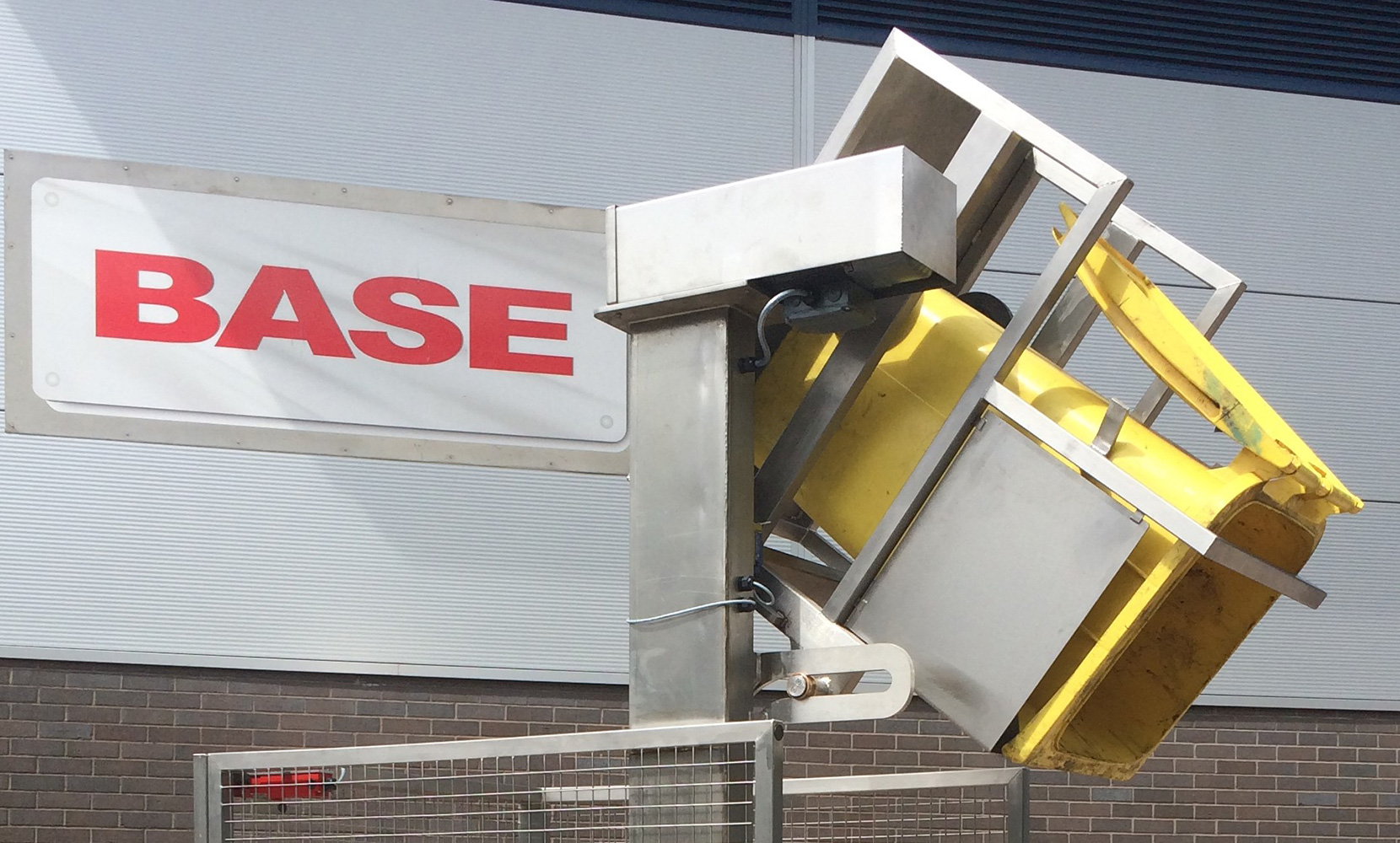

BTM/300/2150/M/G Single Pillar 240 Litre Wheelie Bin Tipper This Single Pillar 240 Litre Wheelie Bin Tipper is designed to lift Britvic special bins and 240 Litre Wheelie Bins to tip at a discharge height of 2150mm. The 240 Litre Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be mobile on castors. The lifting is achieved by a ¾” Duplex chain driven by a motor gearbox mounted at the top of the main column. Safety Guard to BS EN 14120:2015 Safety of Machinery The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery. It encloses the 240 Litre Wheelie Bin Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the 240 Litre Wheelie Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised. 240 Litre Wheelie Bin Tipper Electrical Control This 240 Litre Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The 240 Litre Wheelie Bin Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the 240 Litre Wheelie Bin Tipper to the full down position. The control panel has the facility for a ‘call to run’ signal to be connected if required.
|
