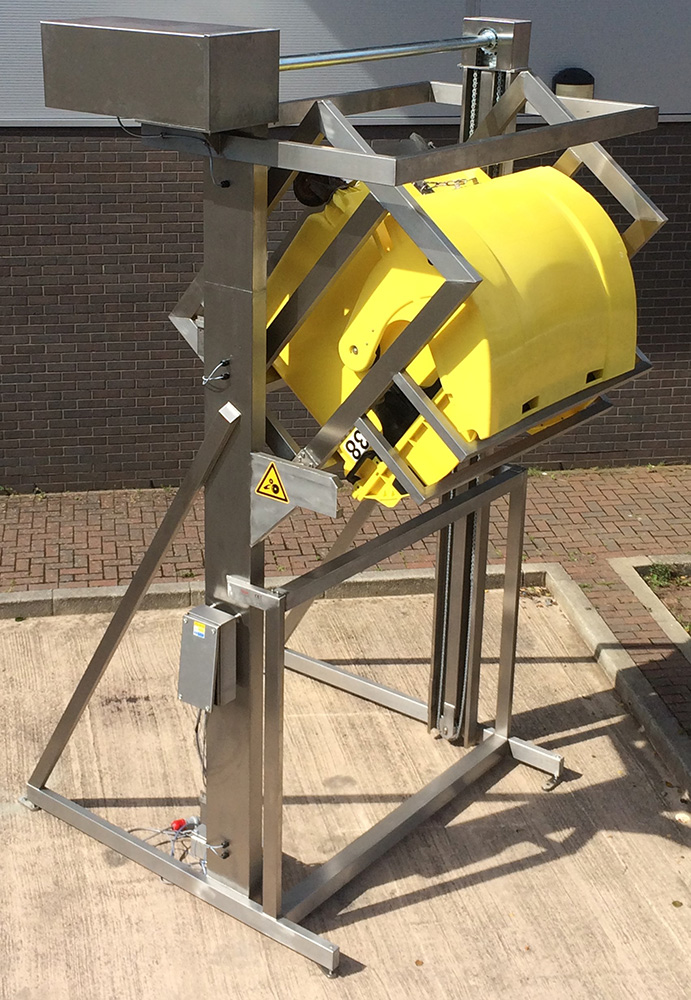

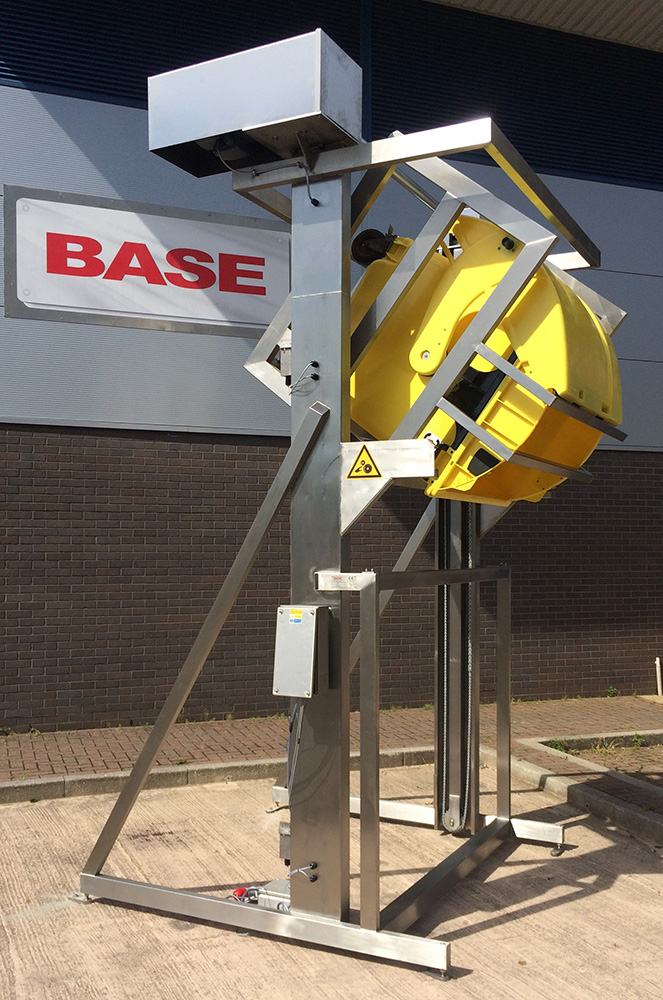

BTM/2P/1000/2100/B Double Column Wheelie Bin Tipper

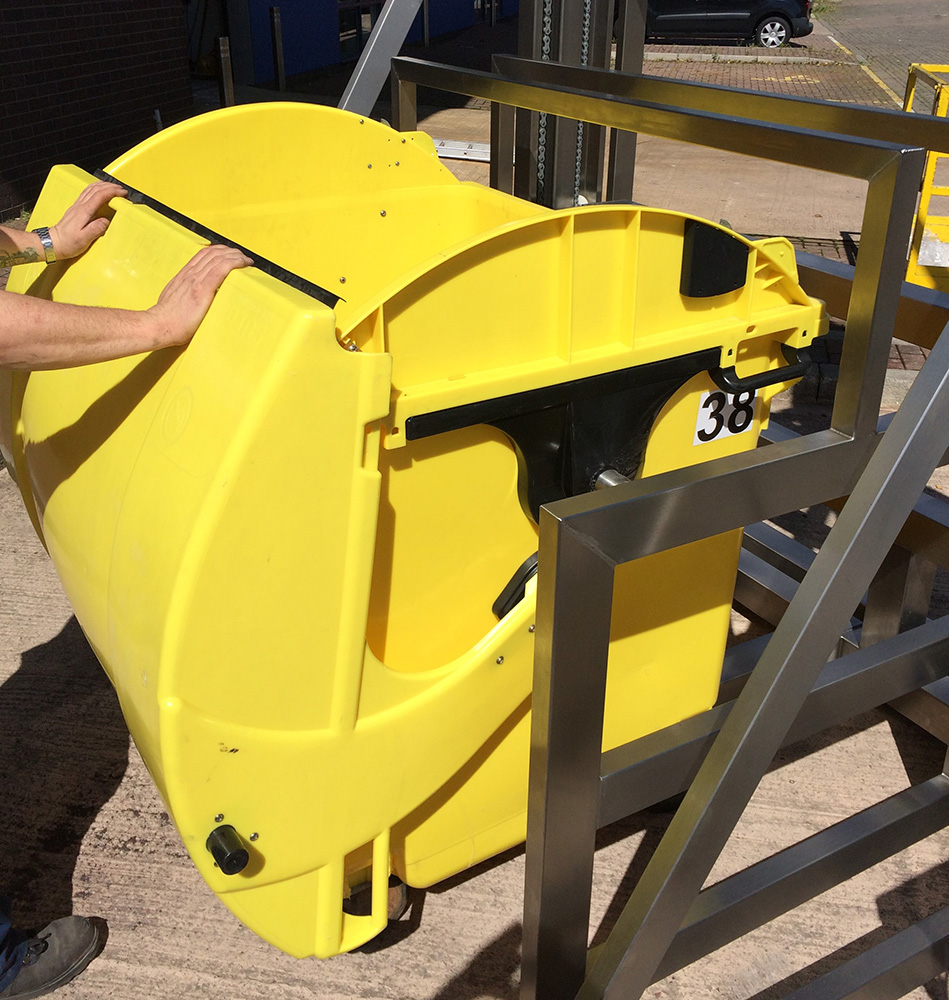

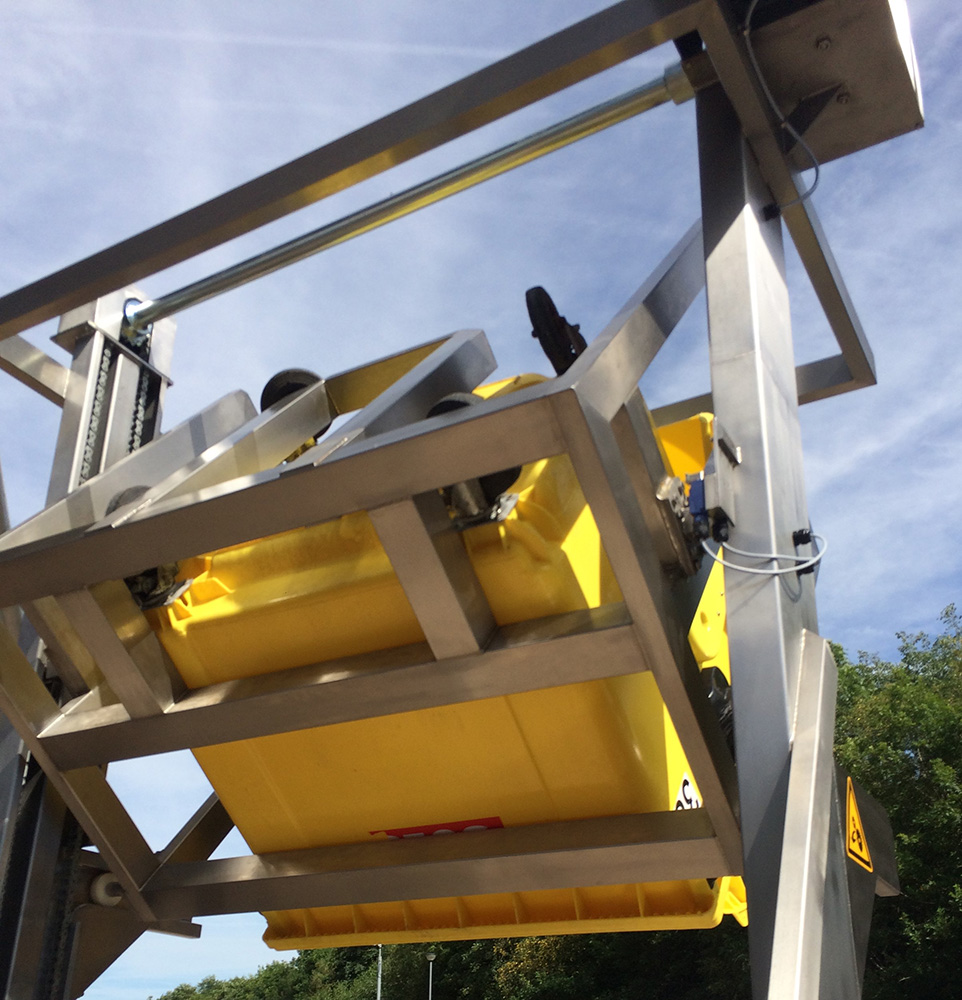

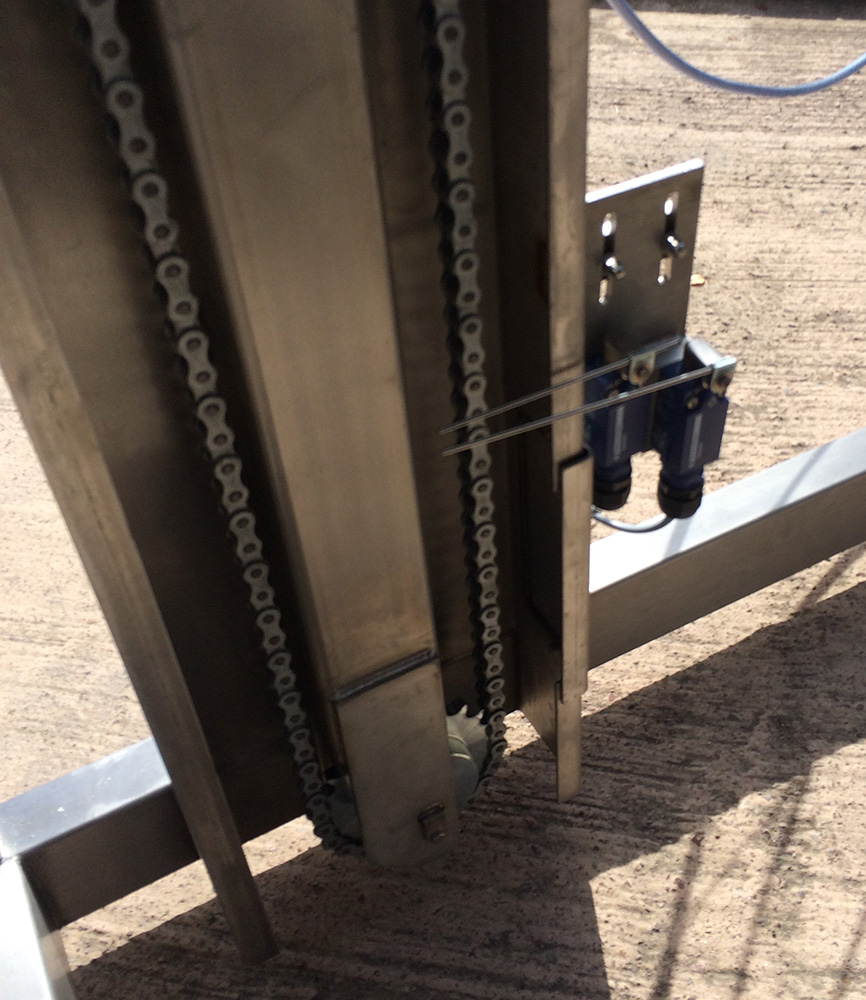

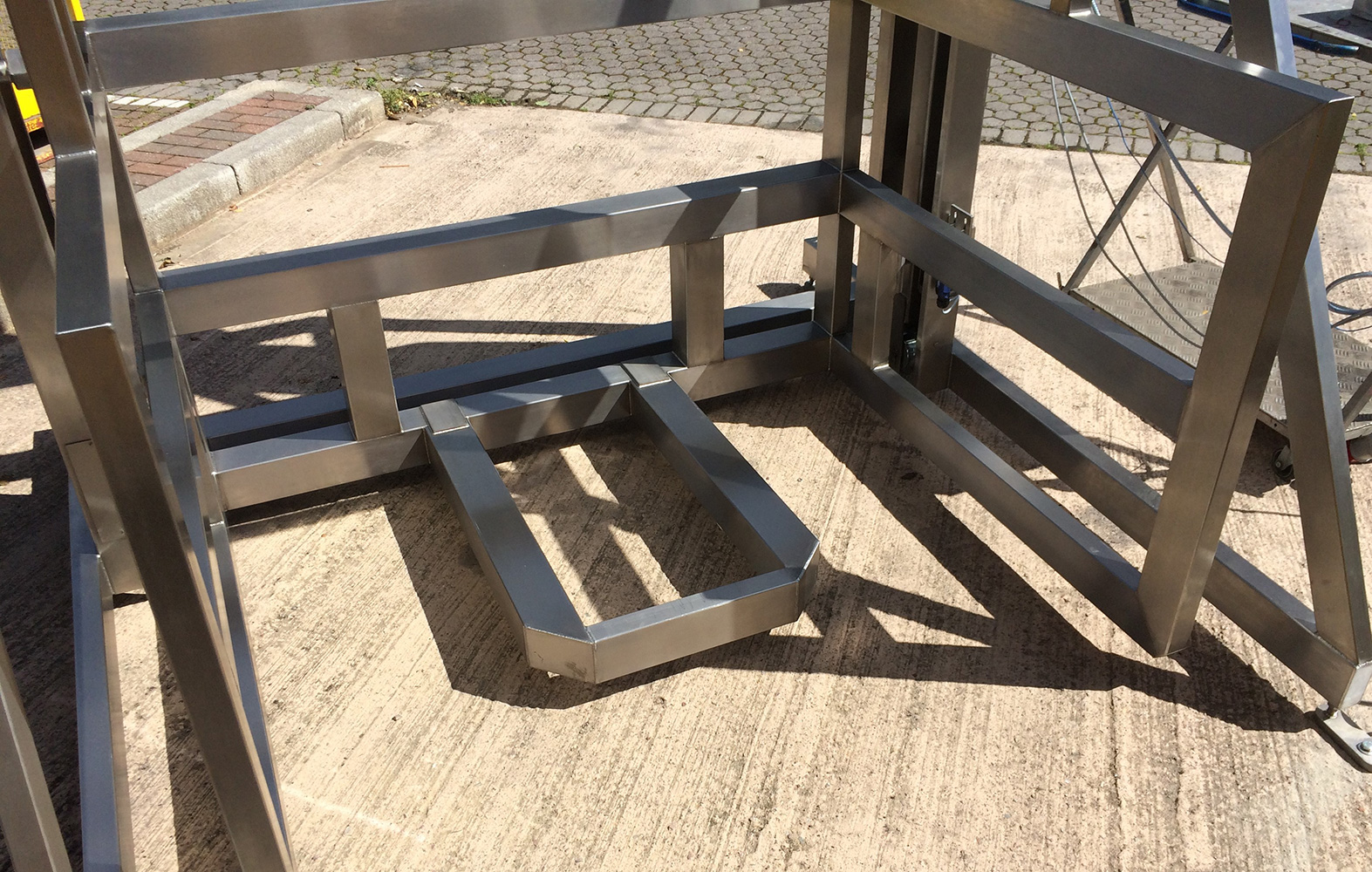

This Double Column Wheelie Bin Tipper is designed to lift and tip an 1100 Litre Wheelie Bin at a discharge height of 2100mm. The Double Column Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column. The bin lid must be opened prior to loading the bin or the bin will not enter the lift carriage.
Double Column Wheelie Bin Tipper Electrical Control
This Double Column Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Terminal Box which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.
|
