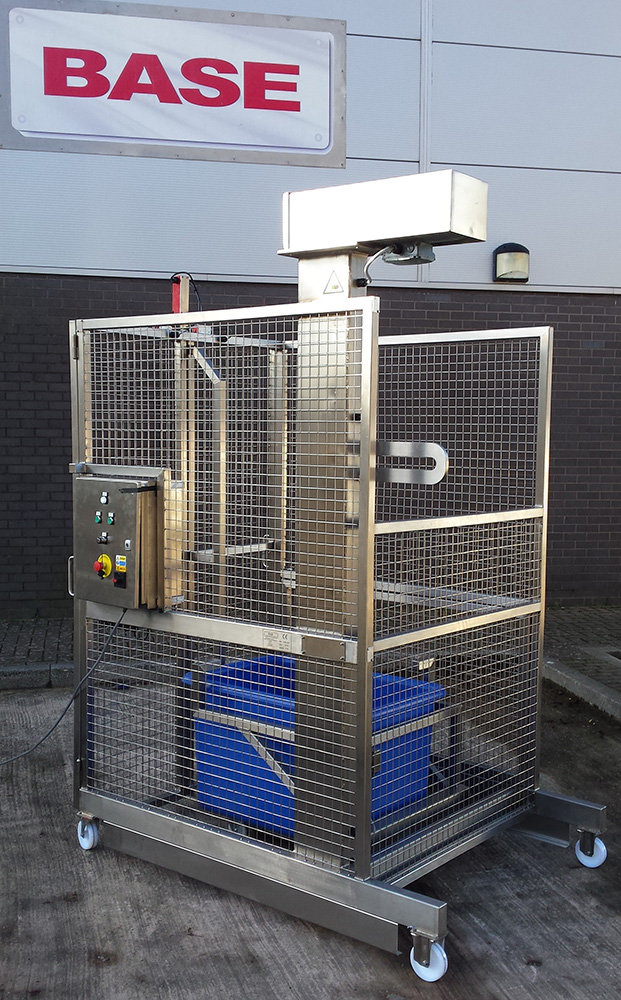

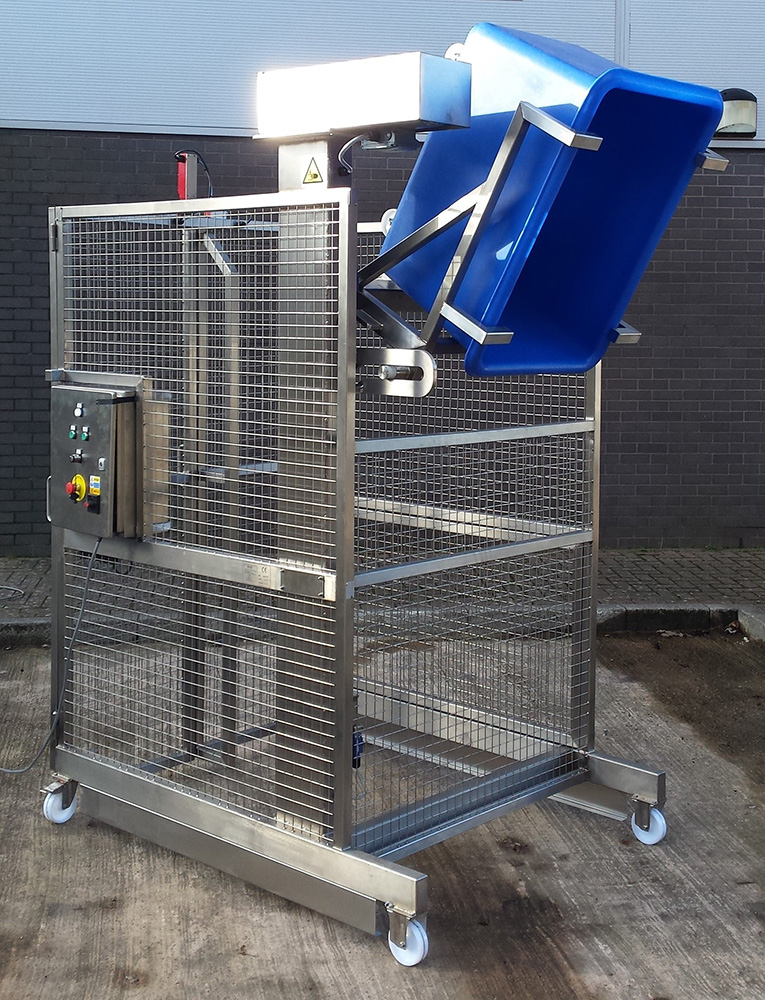

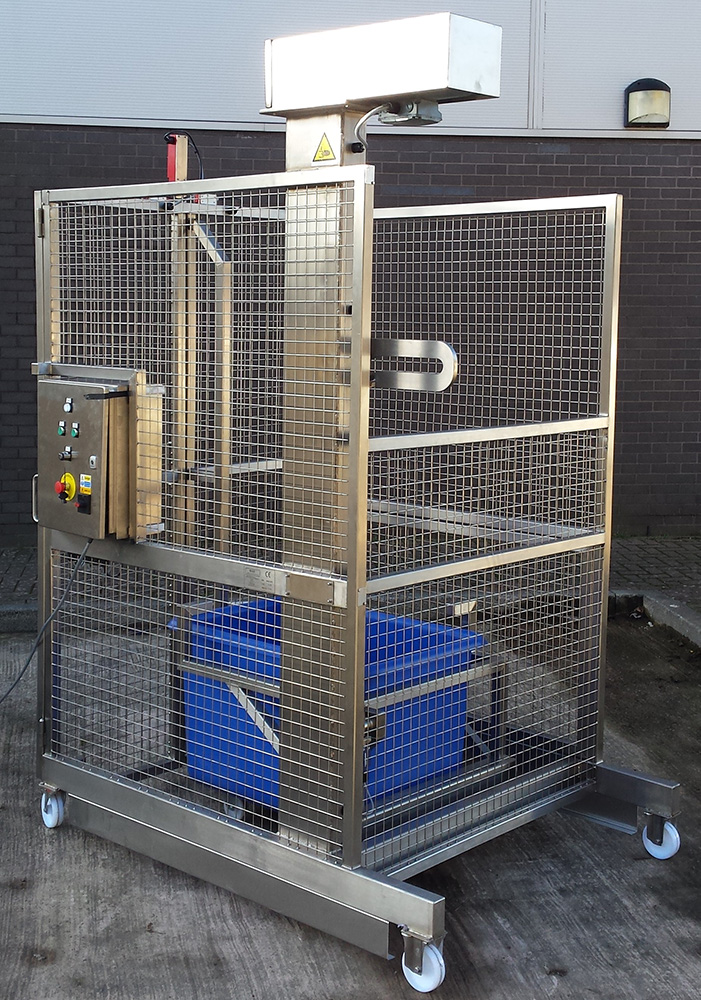

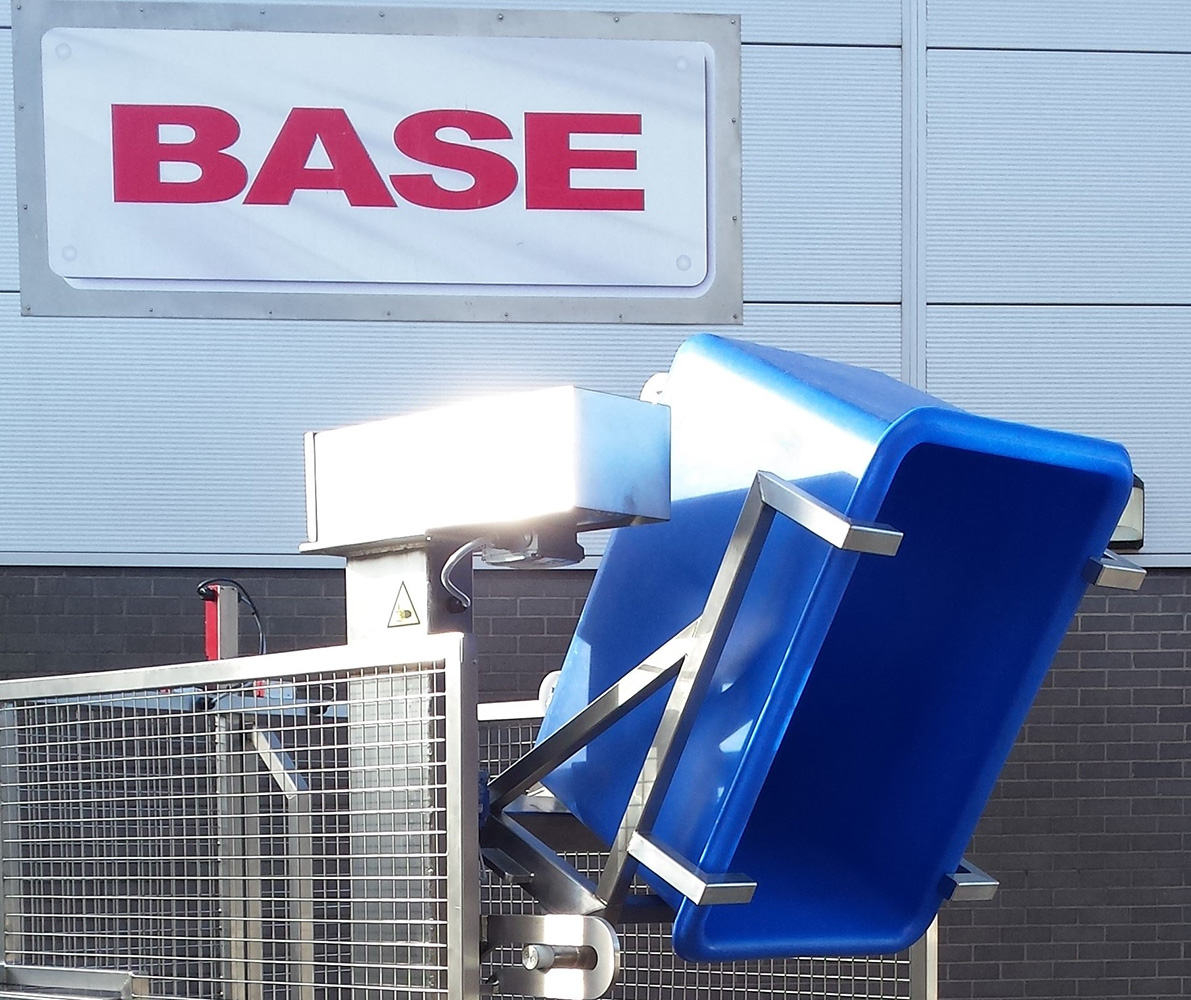

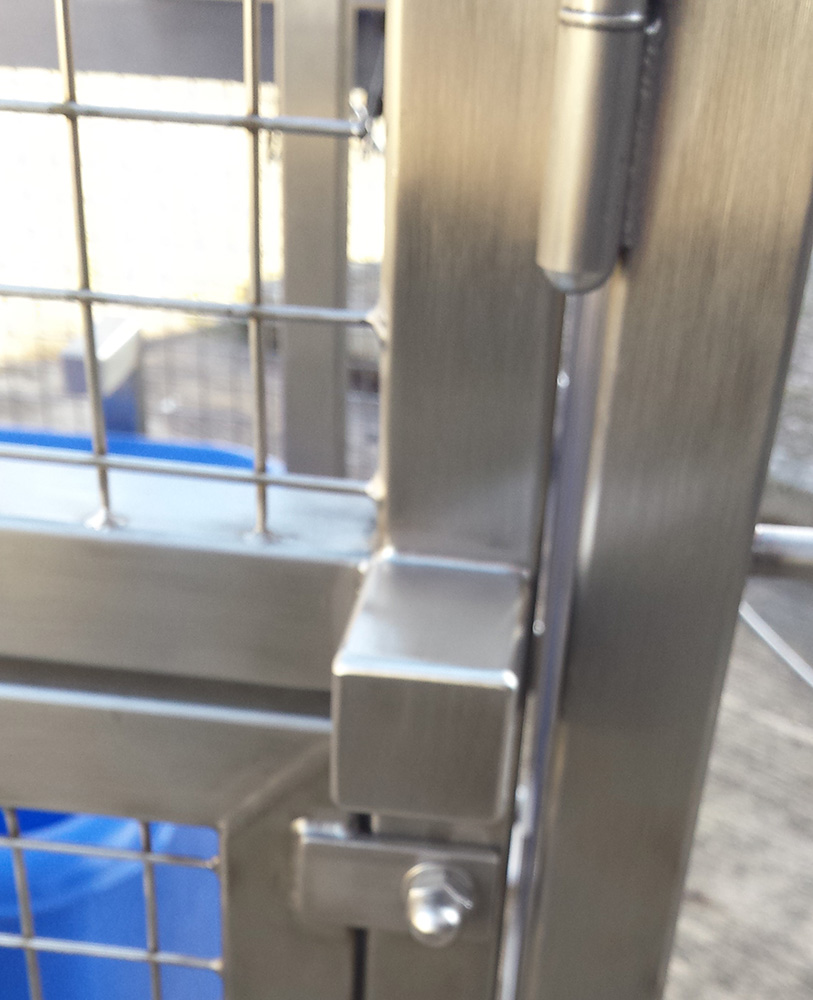

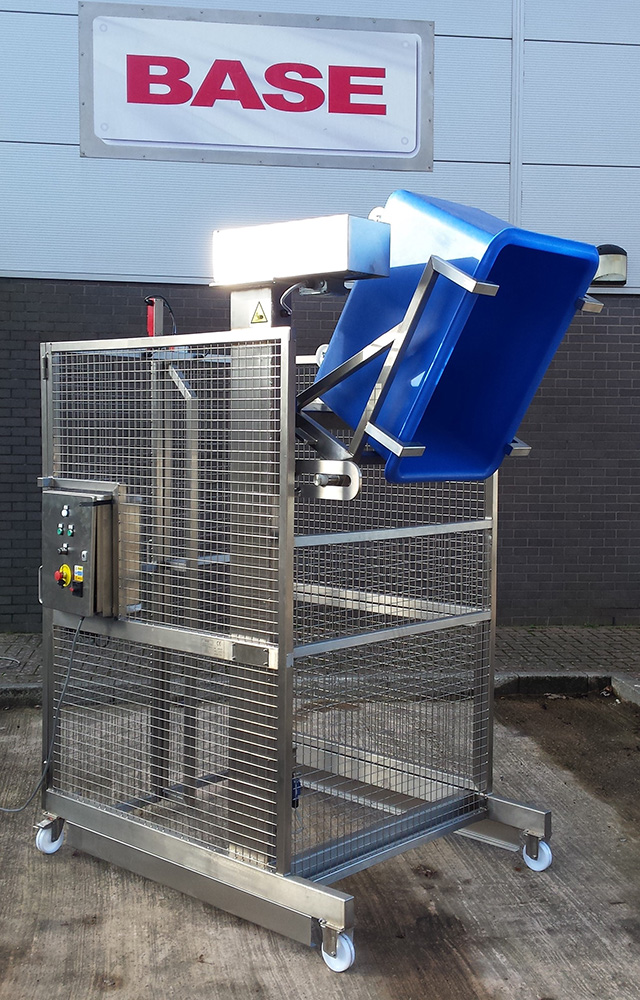

BTM/350/1600/M/G Single Pillar Tray Tipper This Single Pillar Tray Tipper is designed to lift and tip at a discharge height of 1600mm. The Tray Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Tray Tipper was supplied with two fixed castors at the front and two swivel and brake castors at the rear. Safety Guard to BS EN 14120:2015 Safety of Machinery Guards The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 3mm wire, 40mm aperture stainless steel weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. It encloses the Tray Tipper to a height of 2200mm on three sides, with a hinged bi-fold guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Tray Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised. Tray Tipper Electrical Control This Tray Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Start, Guard Release, Emergency Stop and a Reset Facility. The Tray Tipper operation is latched so that pressing the ‘Start’ push button once will raise the lift to the full tip position. The lift will pause at ‘Full Tip’ for a timed period which is Engineer adjustable. Once the product has been discharged the lift carriage will return to the full down position.
|
