Dolaf Bin Platform Lift

PLM/2P/1000/4000/B/G

Features

  • Stainless Steel or Mild Steel Construction
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Goods Lifts for Pallets, Bins, Drums etc
  • Lift Heights – No Maximum
  • Lifting Capacity - No Maximum
  • Chain Drive
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and UKCA or CE Certified
  • Direct from a British Manufacturer
Description

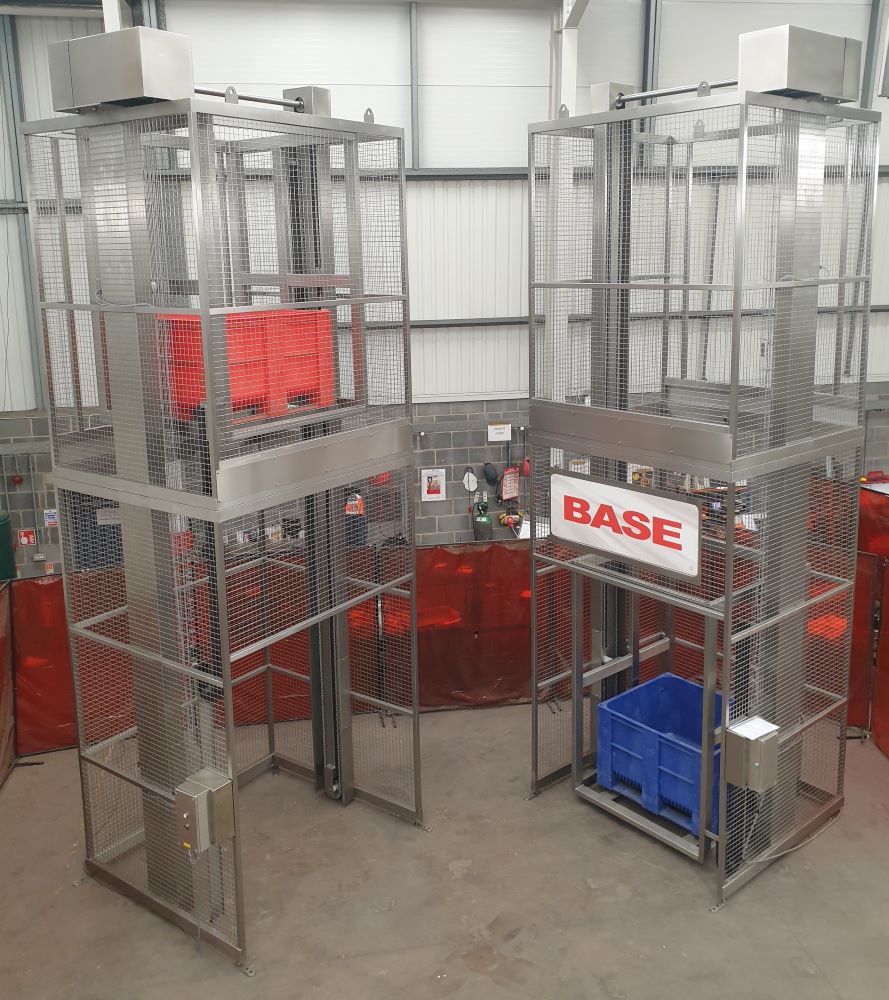

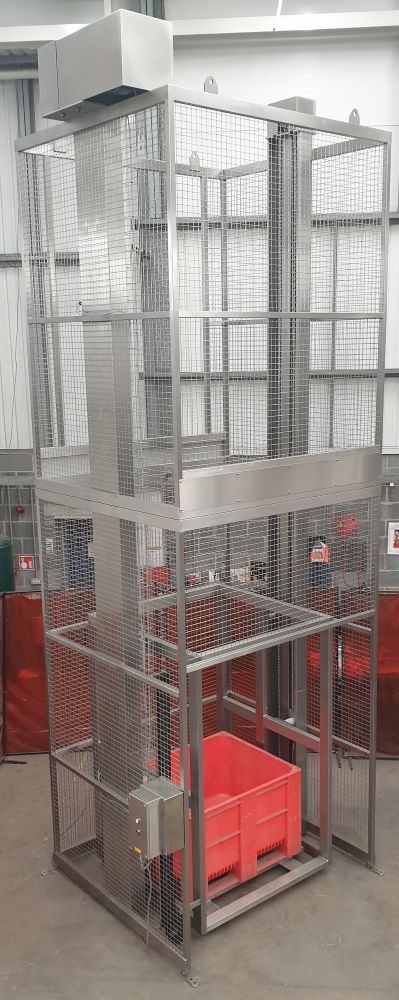

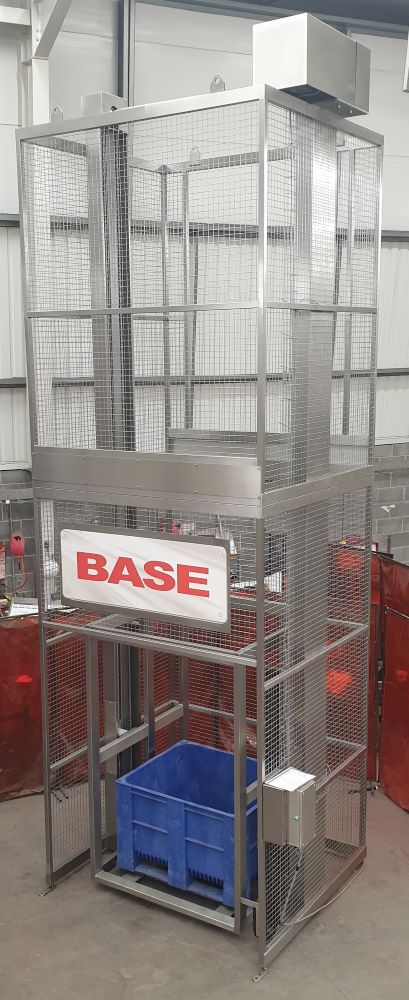

PLM/2P/1000/4000/B/G Dolaf Bin Platform Lift

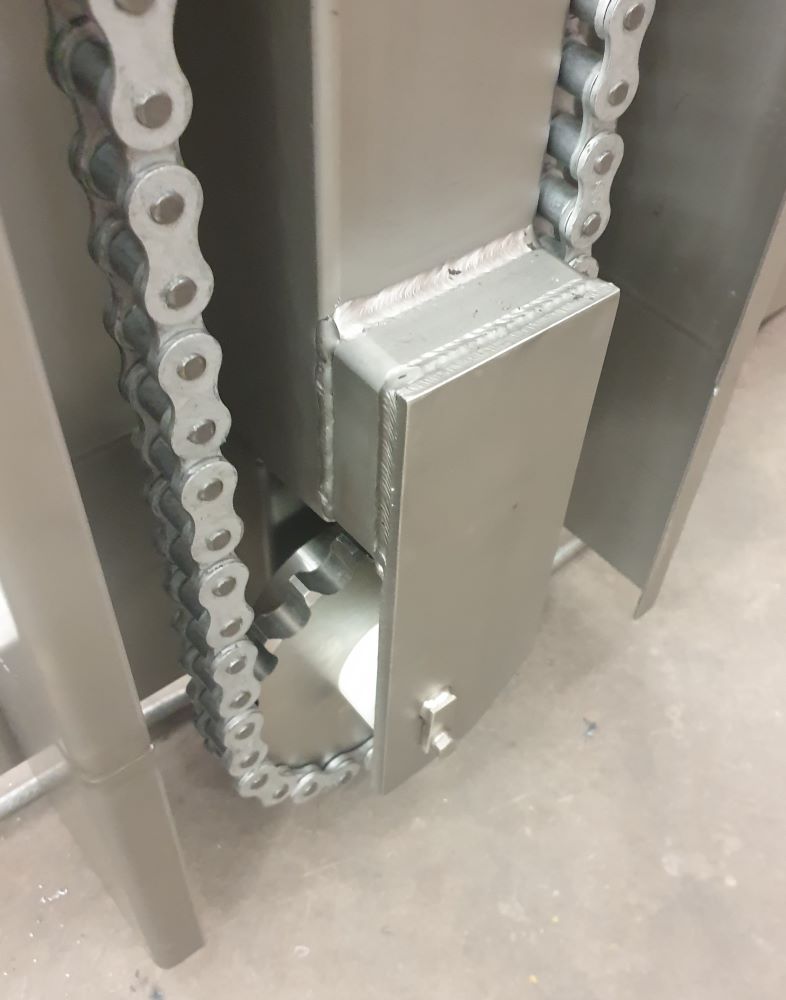

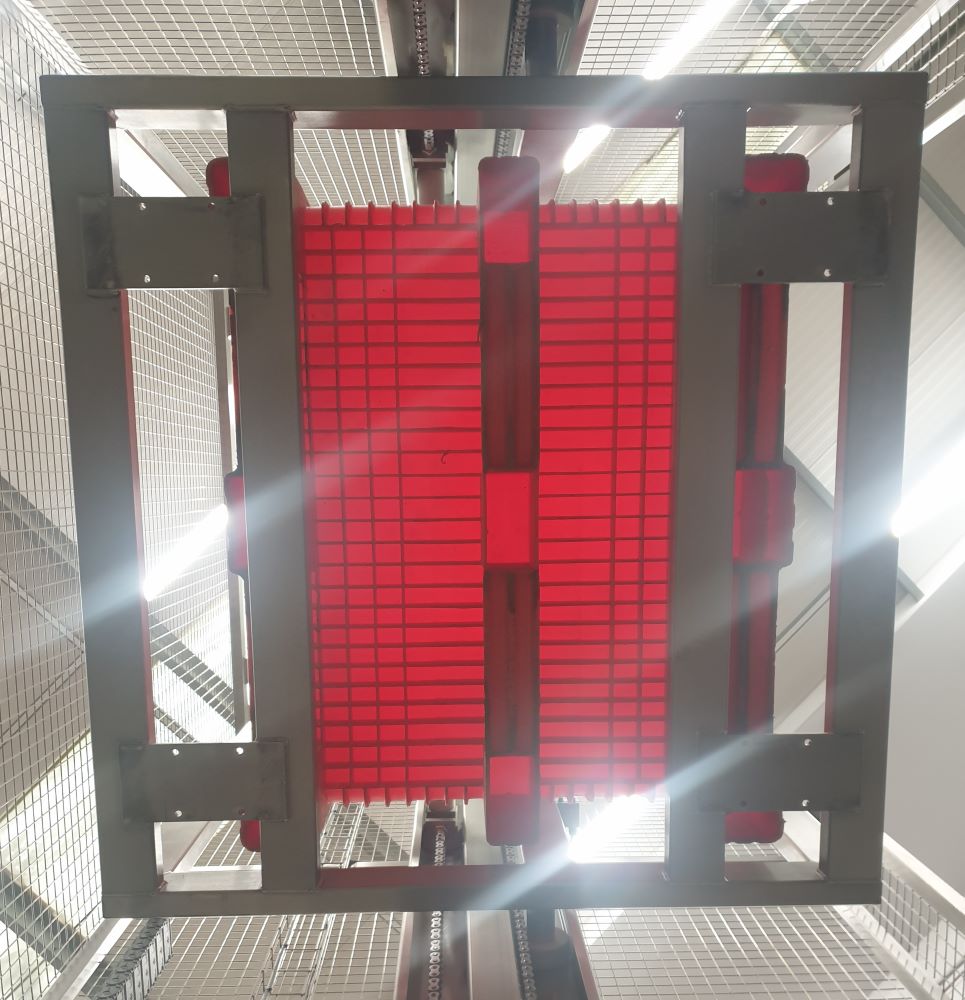

This Dolaf Bin Platform Lift had a Safe Working Load of 1000 Kgs to raise Dolaf Bins to a transfer conveyor at a lift height of 4000mm. The lifting platform was big enough to allow a Dolaf Bin Transfer Conveyor to be mounted on the lift carriage. The Dolaf Bin Platform Lift was manufactured from Grade 304 stainless steel and is a welded construction throughout. The machine is designed to be bolted to the floor without the need for a pit. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Dolaf Bin Platform Lift Electrical Control



This Dolaf Bin Platform Lift was fitted with an IP65 Stainless Steel Terminal Box which was mounted on the safety guard at the lower level for the control to be completed by others. The following components were be wired back to the terminal box:-



  • 1 off    Motor Gearbox & Brake

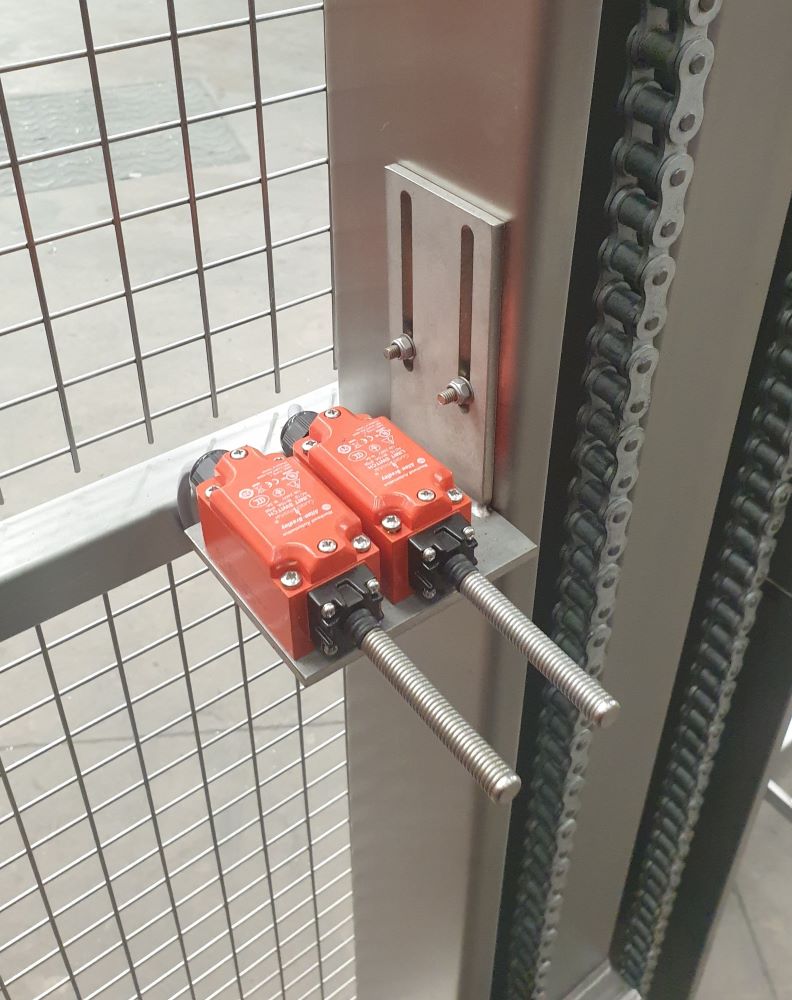

  • 2 off    Upper Limit Switches
  • 2 off    Lower Limit Switches
Specification
Description 1000 Kgs Dolaf Bin Platform Lift
Model No. PLM/2P/1000/4000/B/G
Capacity 1000 Kgs
Lift Height 4000mm
Overall Height 6203mm
Platform Size 1400 x 1300mm Wide
Machine Handing Right Hand Or Left Hand
Maximum Headroom 7800mm
Container Description 1200 x 1000 x 880mm Dolaf Container
Base Arrangement Bolted To The Floor
Electrical Rating IP65
Limit Switches Telemecanique
Motor Detail 2.2kW, 415V, 3 PHASE, 50 CYCLE & BRAKE
Gearbox Detail SEW Eurodrive
Lift Chain 1" Simplex
Tensile Strength 6000 Kgs, 3000 Kgs
Tension Chain ¾” Simplex
Lift Speed 6.4 Meters/Minute
